XCMG 20 Ton Pneumatic Tire Rollers XP203

XP263K/XP303K

Tyred Roller

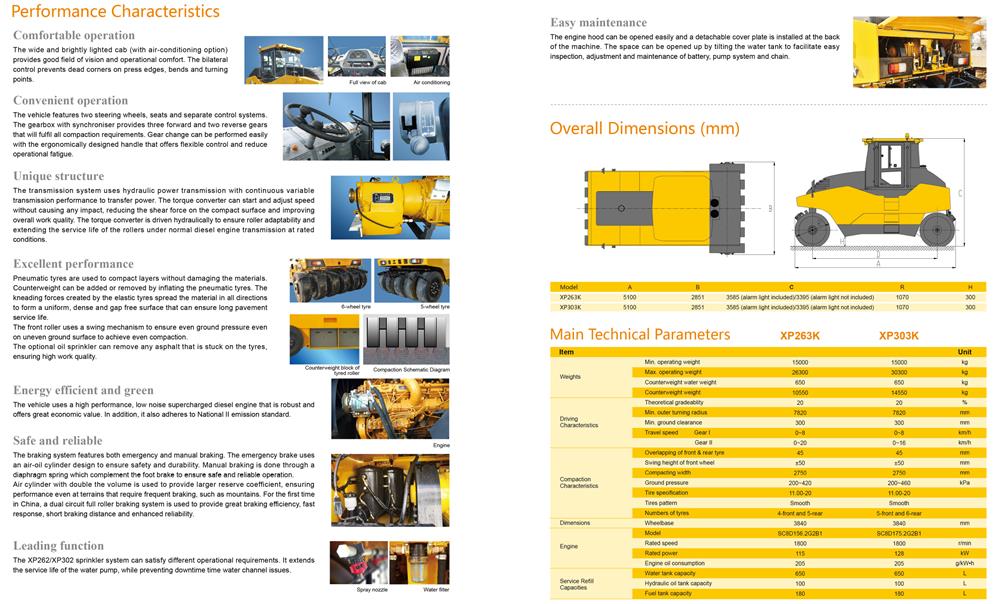

Performance Characteristics

Comfortable operation

The wide and brightly lighted cab (with air-conditioning option) provides good field of vision and operational comfort. The bilateral control prevents dead corners on press edges, bends and turning points.

Convenient operation

The vehicle features two steering wheels, seats and separate control systems. The gearbox with synchroniser provides three forward and two reverse gears that will fulfil all compaction requirements. Gear change can be performed easily with the ergonomically designed handle that offers flexible control and reduce operational fatigue.

Unique structure

The transmission system uses hydraulic power transmission with continuous variable transmission performance to transfer power. The torque converter can start and adjust speed without causing any impact, reducing the shear force on the compact surface and improving overall work quality. The torque converter is driven hydraulically to ensure roller adaptability and extending the service life of the rollers under normal diesel engine transmission at rated conditions.

Excellent performance

Pneumatic tyres are used to compact layers without damaging the materials. Counterweight can be added or removed by inflating the pneumatic tyres. The kneading forces created by the elastic tyres spread the material in all directions to form a uniform, dense and gap free surface that can ensure long pavement service life.

The front roller uses a swing mechanism to ensure even ground pressure even on uneven ground surface to achieve even compaction.

The optional oil sprinkler can remove any asphalt that is stuck on the tyres, ensuring high work quality.

Energy efficient and green

The vehicle uses a high performance, low noise supercharged diesel engine that is robust and offers great economic value. In addition, it also adheres to National II emission standard.

Safe and reliable

The braking system features both emergency and manual braking. The emergency brake uses an air-oil cylinder design to ensure safety and durability. Manual braking is done through a diaphragm spring which complement the foot brake to ensure safe and reliable operation.

Air cylinder with double the volume is used to provide larger reserve coefficient, ensuring performance even at terrains that require frequent braking, such as mountains. For the first time in China, a dual circuit full roller braking system is used to provide great braking efficiency, fast response, short braking distance and enhanced reliability.

Leading function

The XP262/XP302 sprinkler system can satisfy different operational requirements. It extends the service life of the water pump, while preventing downtime time water channel issues.

Easy maintenance

The engine hood can be opened easily and a detachable cover plate is installed at the back of the machine. The space can be opened up by tilting the water tank to facilitate easy inspection, adjustment and maintenance of battery, pump system and chain.
