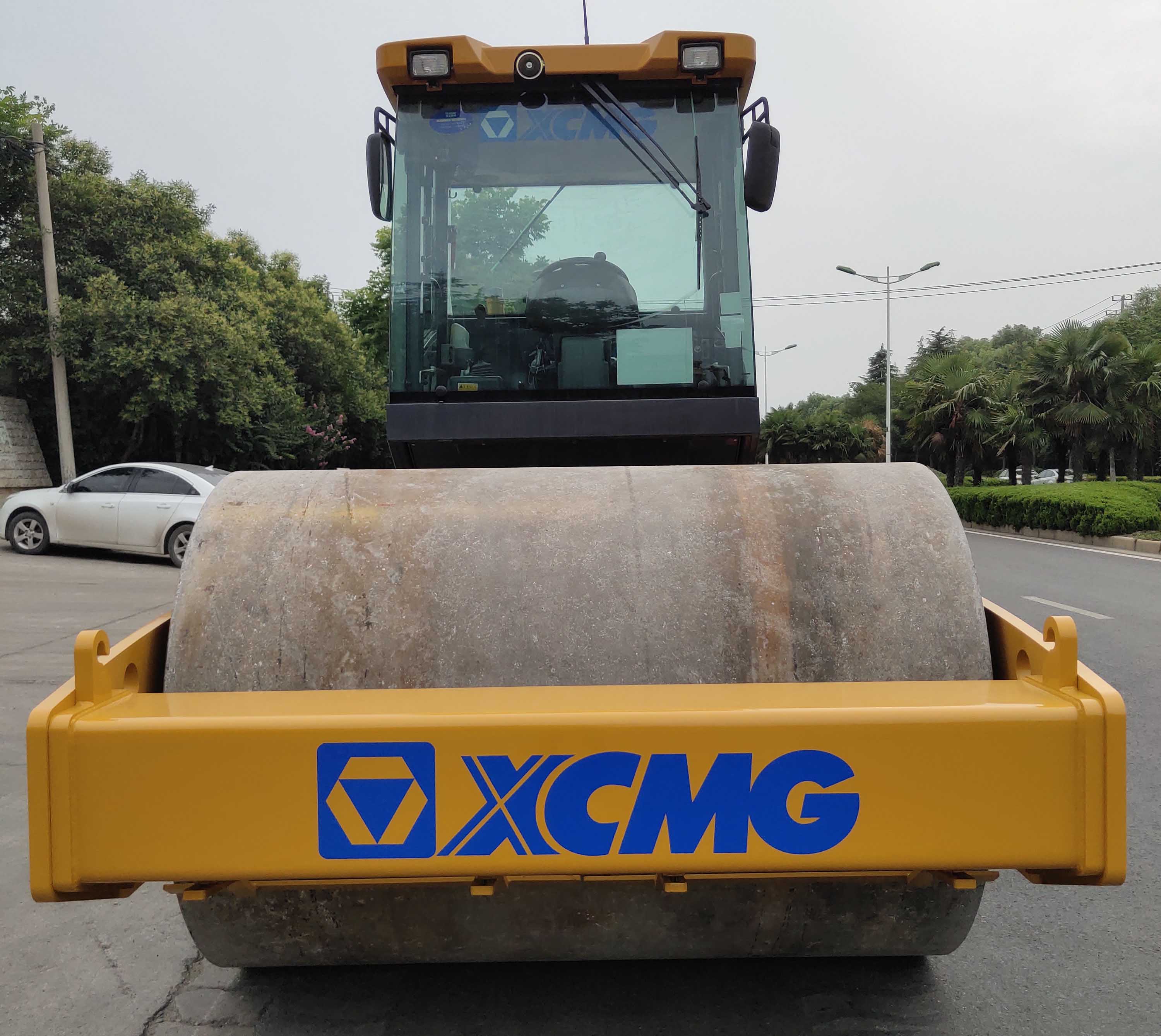

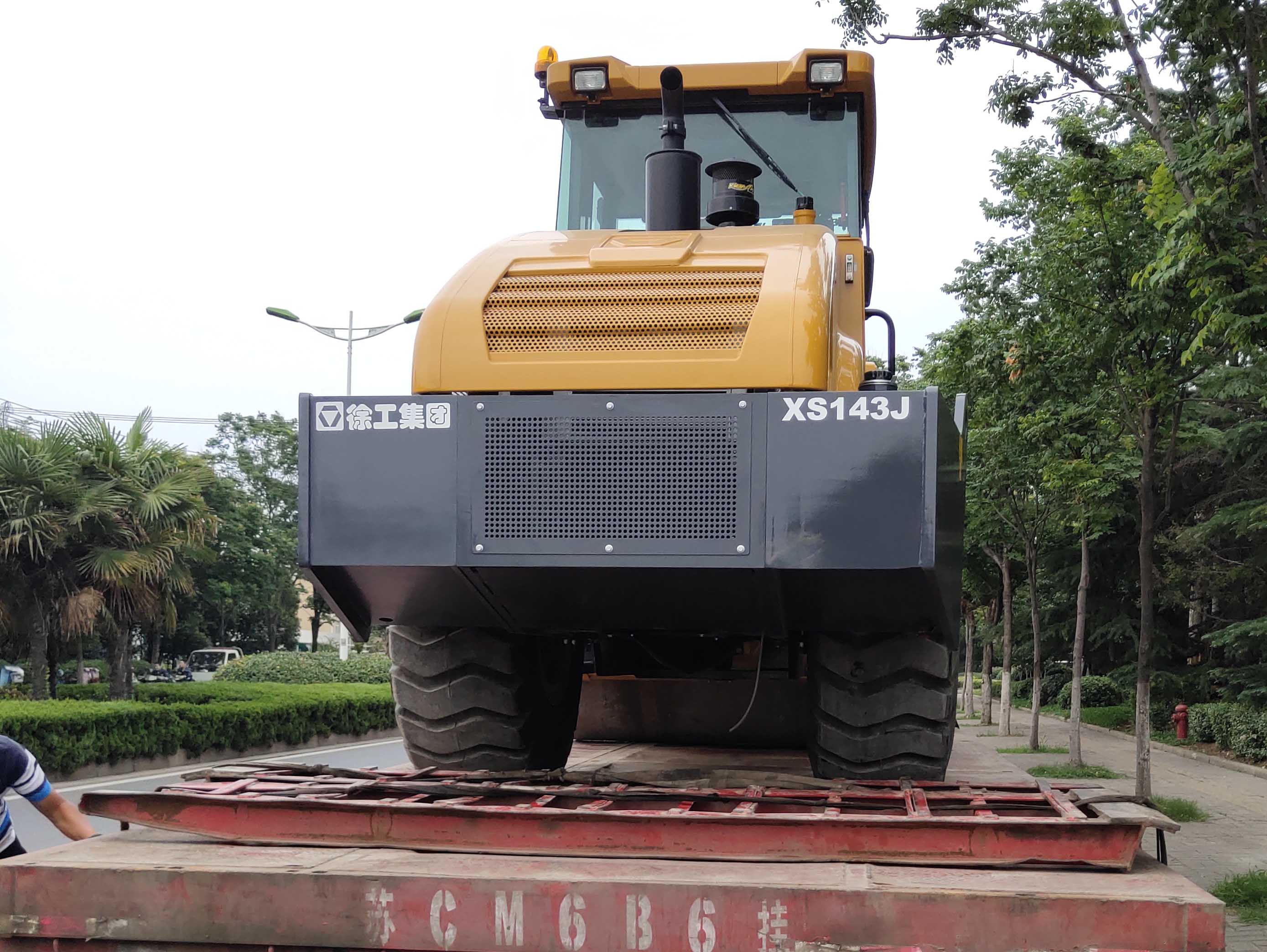

The XS143J vibratory roller is a heavy self-propelled vibratory roller.It can effectively compact variety of soil curses and gravel fill.It is used for modern highways,airports,earthwork fill,ports,dykes,railways,mines,and other engineering projects which require deep compaction and high efficiency.
Model | Unit | XS143J |
Operating weight | kg | 14000 |
Weight on front drum | kg | 7000 |
Static linear pressure | N/cm | 322 |
Speed range | km/h | |
Speed I | 2.7 | |
Speed II | 4.8 | |
Speed III | 10.5 | |
Theoretical gradeability | % | 30 |
Min. external turning radius | mm | 6800 |
Steering angle | ° | ±30 |
Oscillating angle | ° | ±11 |
Vibration frequency | Hz | 28 |
Nominal amplitude (high/low) | mm | 1.9/0.95 |
Excitation force (high/low amplitude) | kN | 274/137 |
Engine model | SC5D125G2B1 | |
Type | Water cooled, pressurized | Water cooled, pressurized |
Max. power | kW | 92@2200r/min |
Engine oil consumption | g/kW.h | 230 |
Hydraulic oil tank capacity | L | 170 |
Fuel tank capacity | L | 180 |
