XCMG 60 Ton Rough Terrain Crane RT60A

Four-section. 11.32 m-35.5m long. Single-cylinder plus ropes telescoping mechanism is for synchronous telescoping....

XCMG 60 Ton Rough Terrain Crane RT60A

Product Details

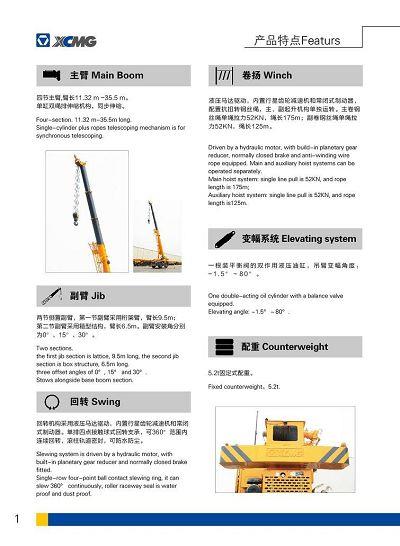

Main Boom

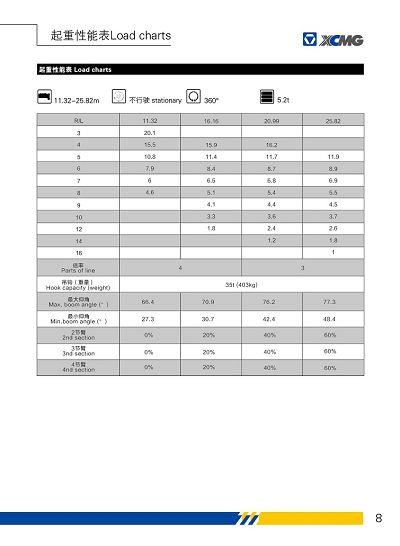

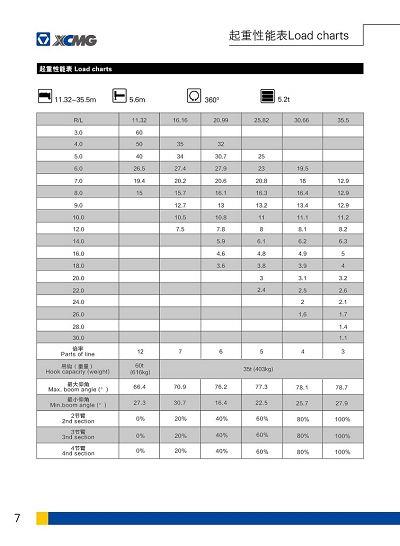

11.32 m-35.5m long. Single-cylinder plus ropes telescoping mechanism is for synchronous telescoping.


Two sections.

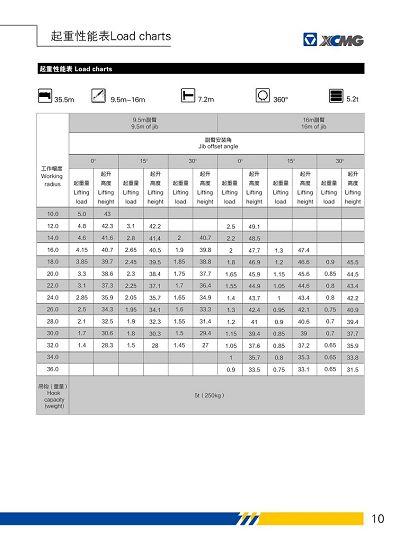

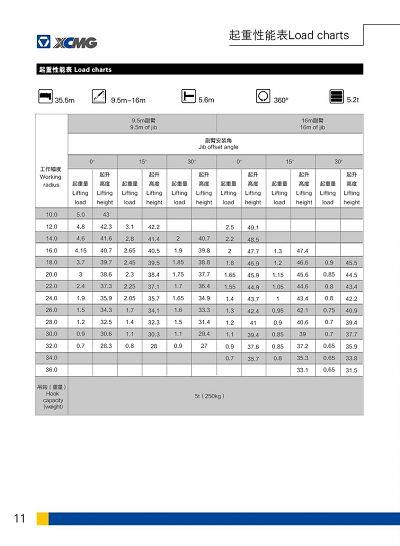

The first jib section is lattice, 9.5m long, the second jib section is box structure. 6.5m long. Three offset angles of 0°, 5° and 30°
Stows alongside base boom section.


Slewing system is driven by a hydraulic motor. With built-in planetary gear reducer and normally closed brake fitted.

Single-row four- point ball contact slewing ring, it can slew 360° continuously, roller raceway seal is water proof and dust proof.

Driven by a hydraulic motor, with build-in planetary gear reducer, normally closed brake and anti -winding wire rope equipped. Main and auxiliary hoist systems can be operated separately.

Main hoist system: single line pull is 52KN, and rope length is 175m;

Auxiliary hoist system: single line pull is 52KN, and rope length is 125m.

Elevating System
One double-acting oil cylinder with a balance valve equipped.

Elevating angle: -1.5° -80°

Fixed counterweight, 5.2t.

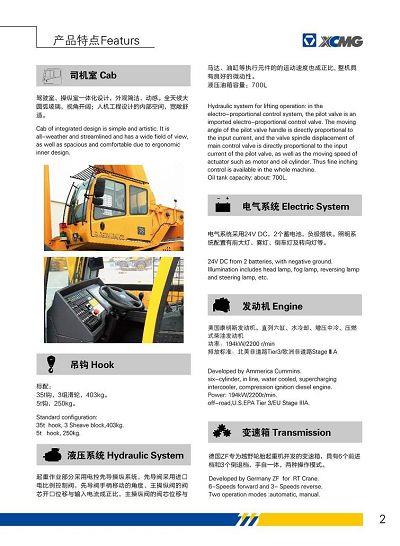

Cab of integrated design is simple and artistic. It is all-weather and streamlined and has a wide field of view, as well as spacious and comfortable due to ergonomic inner design.

Standard configuration: 35t hook, 3 Sheave block, 403kg.
5t hook, 250kg.

Hydraulic System
Hydraulic system for lifting operation: in the electra-proportional control system, the pilot valve is an imported electra-proportional control valve. The moving angle of the pilot valve handle is directly proportional to the input current, and the valve spindle displacement of main control valve is directly proportional to the input current of the pilot valve, as well as the moving speed of actuator such as motor and oil cylinder. Thus fine inching control is available in the whole machine.

Oil tank capacity: about: 700L.

Electric System
24V DC from 2 batteries, with negative ground.

Illumination includes head lamp, fog lamp, reversing lamp and steering lamp, etc.

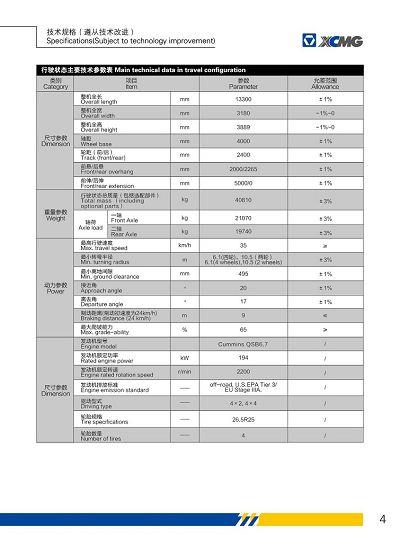

Developed by America Cummins. Six-cylinder, in line, water cooled, supercharging intercooler, compression ignition diesel engine.

Power: 194kWI2200r/min.

Off-road, U.S.EPA Tier 3/EU Stage IIIA.

Developed by Germany ZF for RT Crane.

6- Speeds forward and 3- Speeds reverse.

Two operation modes: automatic, manual.

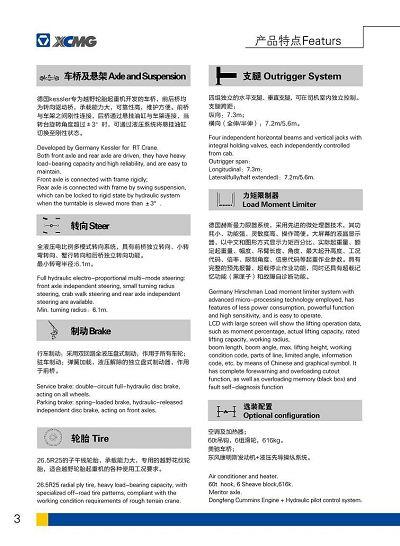

Axle and Suspension
Developed by Germany Kessler for RT Crane.

Both front axle and rear axle are driven, they have heavy load-bearing capacity and high reliability, and are easy to maintain.

Front axle is connected with frame rigidly;

Rear axle is connected with frame by swing suspension, which can be locked to rigid state by hydraulic system when the turntable is slewed more than ± 3°

Full hydraulic electro- proportional multi-mode steering: front axle independent steering. small turning radius steering. crab walk steering and rear axle independent steering are available.

Min. turning radius: 6.1m.

Service brake: double-circuit full-hydraulic disc brake, acting on all wheels.

Parking brake: spring-loaded brake, hydraulic-released, independent disc brake, acting on front axles.


26.5R25 radial ply tire. Heavy load- bearing capacity, with specialized off-road tire patterns, compliant with the working condition requirements of rough terrain crane.

Four independent horizontal beams and vertical jacks with integral holding valves, each independently controlled from cab.

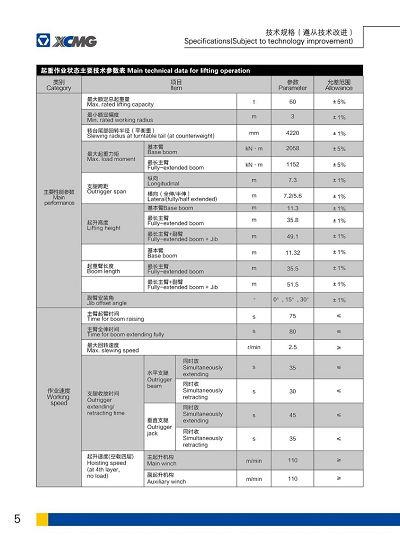

Outrigger span:

Longitudinal: 7.3m ;

Lateral(fully/half extended): 7.2mJ5.6m.

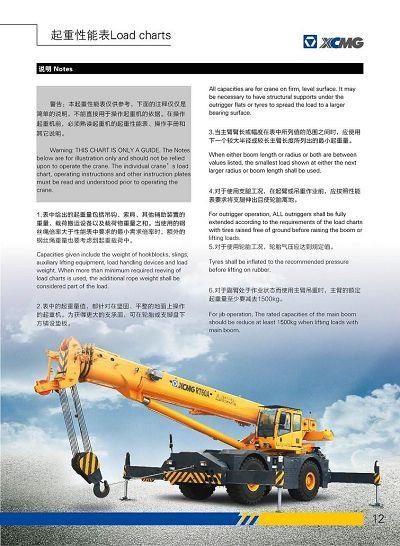

Load Moment Limiter
Germany Hirschman Load moment limiter system with advanced micro-processing technology employed. Has features of less power consumption, powerful function and high sensitivity, and is easy to operate.

LCD with large screen will show the lifting operation data, such as moment percentage, actual lifting capacity, rated lifting capacity, working radius, boom length, boom angle, max lifting height, working condition code, parts of line, limited angle, information code. etc.
By means of Chinese and graphical symbol, it has complete forewarning and overloading cutout

Function, as well as overloading memory (black box) and fault self-diagnosis function
