Developed jointly by Chinese and German engineers, it leads the industry technology tendency. With advanced design concept introduced, perfect product is built with the longest boom, highest lifting capacity and power performance compared with products in the same class....
Developed jointly by Chinese and German engineers, it leads the industry technology tendency. With advanced design concept introduced, perfect product is built with the longest boom, highest lifting capacity and power performance compared with products in the same class.
Three operating modes: superior performance of operation on outriggers, which is not less than that for truck crane in a stationary site; unique performance of operation on tires makes it easy to complete the job what truck crane could not finish when it is difficult to deploy outriggers in a confined site; powerful pick and carry capacity makes fast operation of lifting and transferring load. It is suitable for lifting and transferring operation in oil patch, storage, goods yard, dock and logistic base, etc.
Two driving modes: forward and reverse driving function contributes to fast transferring within a site or from a site to another; four steering modes combined with min. turning radius of 5.7m offers unmatched maneuverability in a confined space. Specialized off-road tires and super power system ensure favorable off-road capacity, suitable for applications in various adverse sites.
DCEC electronically controlled engine (off-road EU Stage IIIA), ZF automatic transmission are matched optimally, contributing to distinguished power performance; The hydraulic system of professional development for the product has good applicability and reliability; CAN bus control system, fault diagnostic system and warning devices ensure safe and efficient operation.
Digital prototype developed with dedicated software is reliable and safe, which has been proved by the specialized analysis via the simulation of actual working conditions, It is proved to be safe and reliable by thousands of lifting operation tests, comprehensive system tests and 4000 km driving test.

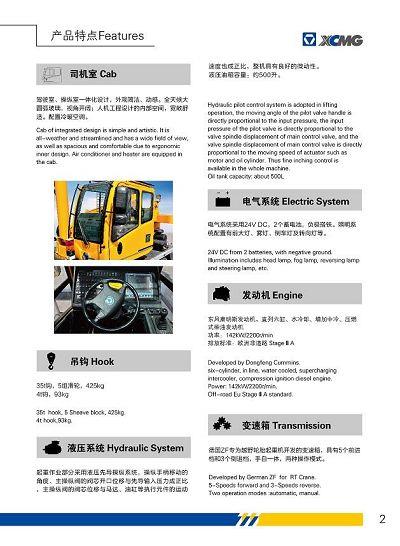

Cab of integrated design is simple and artistic. All-weather cab has a wide field of view and sliding door saving space and facilitating operation. It is spacious and comfortable due to ergonomic inner design.. Damping suspension seat with high backrest may be adjusted according to operator’s body, and can reduce operator fatigue and optimize productivity. Air conditioner and heater are equipped in the cab. Large screen color display combined with main control panel makes operation convenient and easy, and the operating parameters and working conditions may be seen at a glance.
Swing, rigidly lockable hydraulic suspension technology: the shock absorption function of rear suspension may be performed through the swing mechanism and suspension cylinder when driving on roads, consequently road shock is buffered and travel smoothness is improved; the rear suspension cylinder may be locked to rigid state so as to meet the requirement for travel with a load suspended; during operation of crane on tires, when the turntable is turned over ±3°, suspension system may automatically switch over to rigid state, operation safety is ensured.
1). Methods of Payment:
T/T (Telegraphic Transfer) or Western Union.
2). Handling time for an order
Normally It takes about 3-10 days supplied from stock after getting payment.
3). Shipping way
By air or by sea as you required
4). Quality Control
We have our own experienced QC.
There will be strict inspection and testing for every order before shipping out.
5). After Services:
a. Our sales team will response for your question within 24 hours (Holidays Excluded)
b. Technical Support will be available at any time
c. Free replacement will provide once the failure confirmed caused by our product quality
1. Supply item design,process design.
2. Help you to chose the fit machine.
3. Making the machine according to your requirement.
1. Acceptance equipment together with you.
2. Help you to make the method statement and the details of the process.
1. Guarantee for a year.
2. Quality problem,we will send you the accessories.
3. Free repair whole using life(without the freight and accessories charge).
