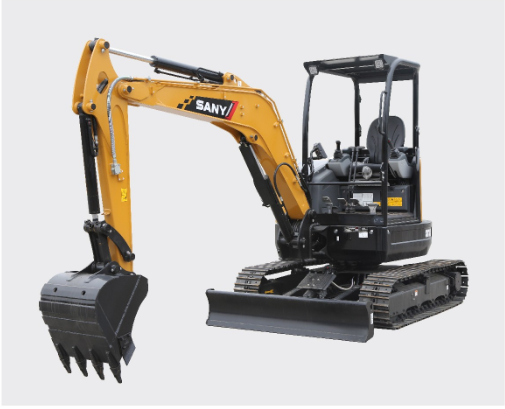

SY35U High-end configuration | All-rounder
Core Configuration
SANY-customized Yanmar 3TNV88 engine meets China Stage IV emission standards, delivering robust performance, high efficiency and reliability.
Engine strengths: Widely applied in mini excavators, well-recognized by customers. Durable, fuel-efficient and easy to maintain.
Hydraulic System The SANY-customized pump and valve system is developed to meet customer needs, boasting high reliability, low pressure loss, and smooth compound operations.
Product Features

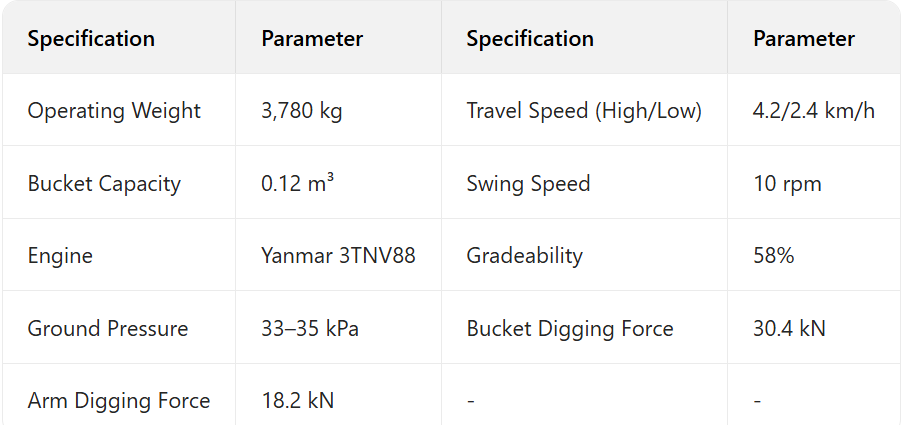

Optimized bucket design delivers a bucket digging force of 30.4kN and an arm digging force of 18.2kN, boosting excavation efficiency.
Bucket teeth are upgraded from vertical pins to horizontal pins, enabling higher efficiency, longer service life, and easier replacement.
Dual-bearing carrier rollers eliminate the risk of jamming.
Standard-Equipped Hydraulic Lock
Hydraulic locks are added to the dozer blade’s hydraulic circuit and tilt cylinder, further reducing cylinder settlement and improving customer satisfaction.

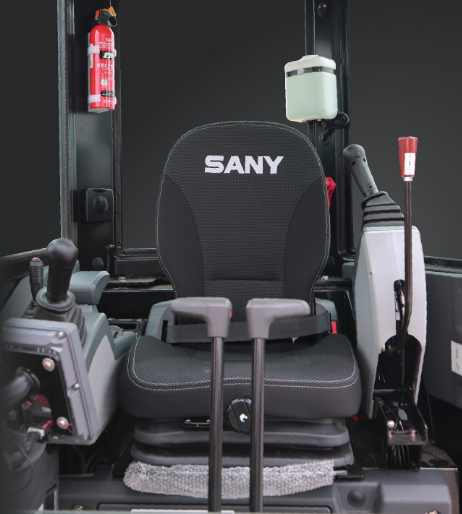

A high-back shock-absorbing comfort seat with reduced SIP height ensures a more comfortable ride. The muffler is optimized and wrapped with thermal insulation foam.
The standard cab is available with an optional canopy for operations in narrow and low spaces, better meeting customer needs.

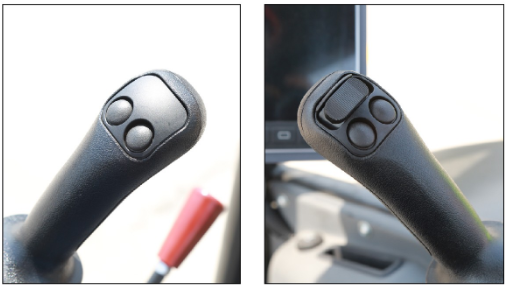

The dozer blade joystick integrates a high-low speed switch. The right joystick is upgraded to a multi-function one, incorporating a hammer function.
Applicable Working Conditions Mainly suitable for small-scale projects including house renovation, ditch excavation, landscaping, vegetable greenhouses, farmland and orchards.
