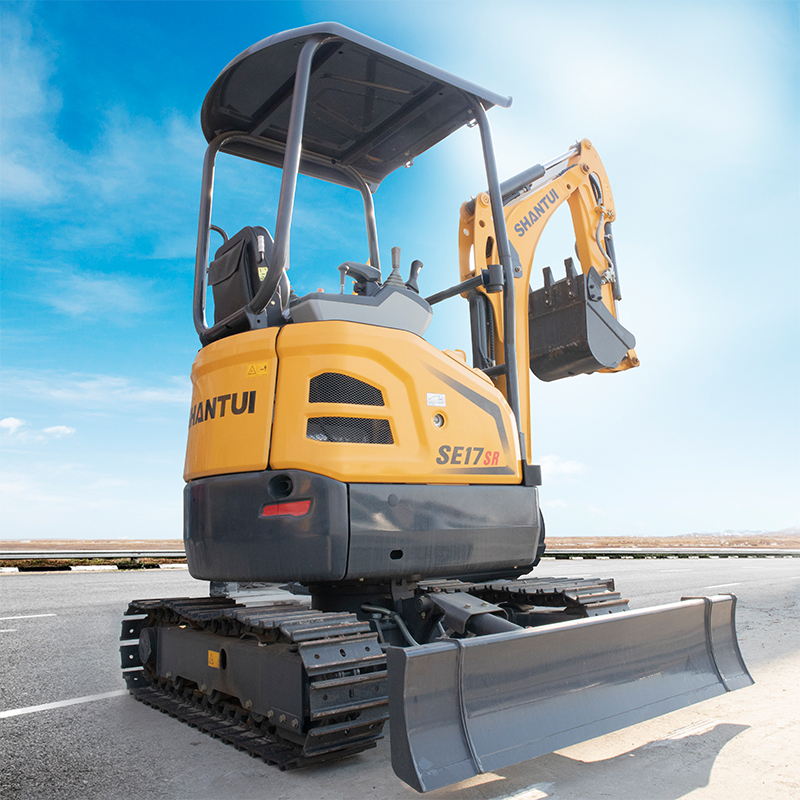

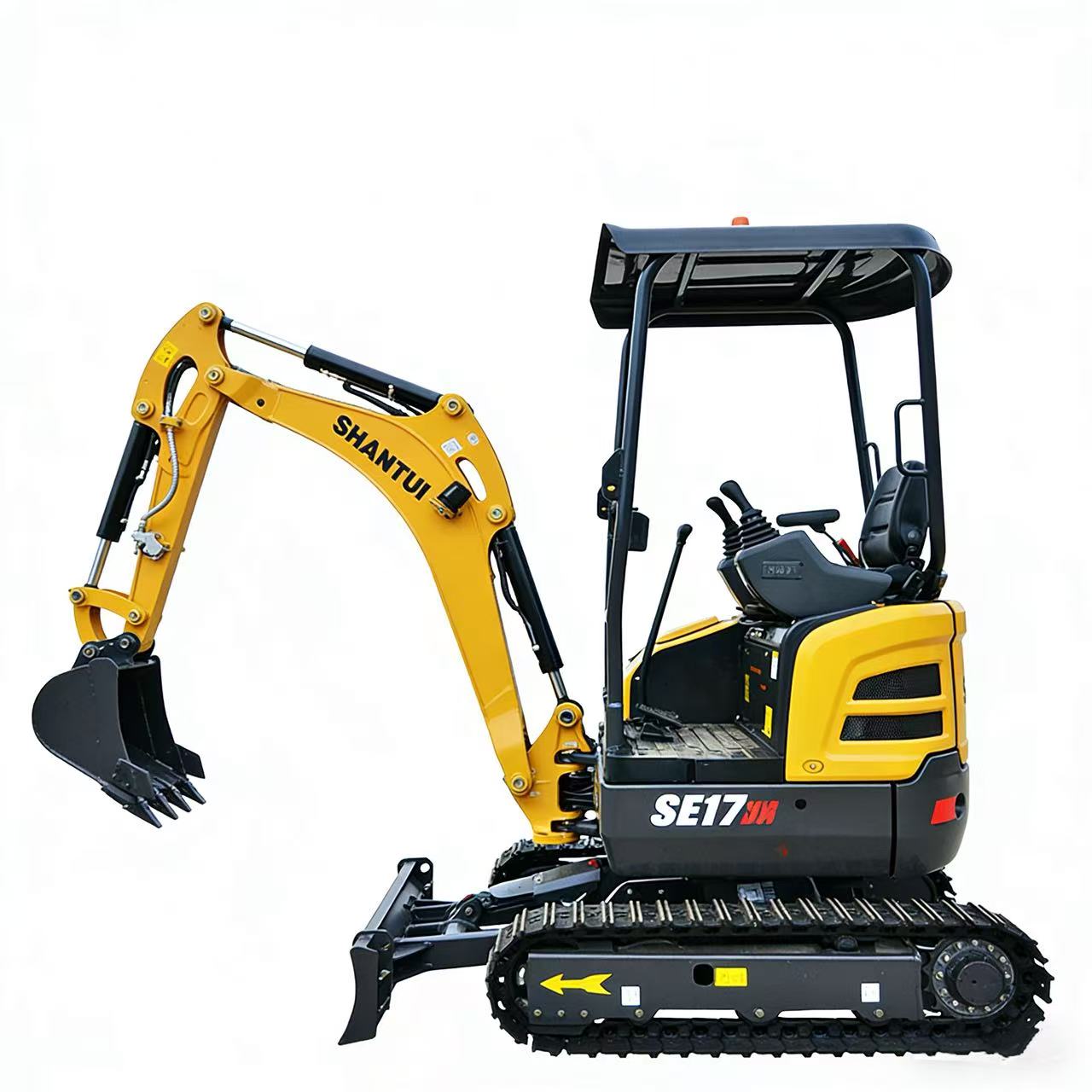

Shantui Mini Excavator SE17SR
Home>Crawler Excavator> Crawler Excavator > Crawler Excavator
Home>Crawler Excavator> Crawler Excavator > Crawler Excavator
SE17SR Product Parameter
| Comparative item | SE17SR (Standard version) |
| Overall dimensions | |
| Overall length (mm) | 3575 |
| Ground length (During transport) (mm) | 2440 |
| Overall height (To the top of boom) (mm) | 1105 |
| Overall width (mm) | 990/1300 |
| Overall height (To top of cab) (mm) | 2405 |
| Ground clearance of counterweight (mm) | 460 |
| Minimum ground clearance (mm) | 145 |
| Tail turning radius (mm) | 650 |
| Track length (mm) | 1593 |
| Track gauge (mm) | 760/1070 |
| Track width (mm) | 990/1300 |
| Standard track shoe width (mm) | 230 |
| Turntable width (mm) | 990 |
| Distance from slewing center to tail (mm) | 650 |
| Working range | |
| Maximum digging height (mm) | 3535 |
| Maximum dumping height (mm) | 2445 |
| Maximum digging depth (mm) | 2270 |
| Maximum vertical digging depth (mm) | 1910 |
| Maximum digging distance (mm) | 3910 |
| Maximum digging distance at ground level (mm) | 3845 |
| Working device minimum turning radius (mm) | 1495 |
| Maximum lifting height of bulldozer blade (mm) | 280 |
| Maximum digging depth of bulldozer blade (mm) | 280 190 |
| Engine | |
| Model | kubota D902 |
| Type | Inline, water-cooled and four cycle |
| Displacement (L) | 0.898 |
| Rated power (kW/rpm) | 11.8/2300 |
| Hydraulic system | |
| Type of hydraulic pump | Swashplate variable displacement pump |
| Rated working flow (L/min) | 64.4 |
| Bucket | |
| Bucket capacity (m³) | 0.04 |
| Swing system | |
| Maximum swing speed (r/min) | 9.5 |
| Brake type | Mechanically applied and pressure released |
| Digging force | |
| Bucket arm digging force (KN) | 9.5 |
| Bucket digging force (KN) | 16 |
| Operating weight and ground pressure | |
| Operating weight (kg) | 1880 |
| Ground pressure (kPa) | 29 |
| Traveling system | |
| Traveling motor | Axial variable displacement plunger motor |
| Traveling speed (km/h) | 2.2/4.3 |
| Traction force (KN) | 18 |
| Gradeability | 58% |
| Tank capacity | |
| Fuel tank capacity (L) | 19 |
| Cooling system (L) | 5 |
| Engine oil capacity (L) | 3.7 |
| Hydraulic oil tank/system capacity (L) | 20/21.4 |
1. Powerful and environment-friendly engine
● Kubota engine imported from Japan
● conforms to Euro V/ EPA Tier 4F emission regulation.
2. High end hydraulic system
● load sensing hydraulic system, with high pressure, high efficiency and fast action response.
● full hydraulic pilot joysticks, excellent control performance.
● automatic speed control travele motor, with high traveling speed
3.Versatility
● tailless swing for safe work in a narrow space.

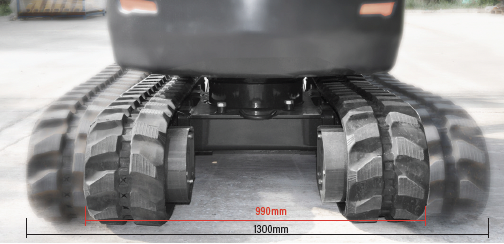

● stretchable undercarriage, which can pass through 1m wide door or channel.
● offest boom, the construction area is fully covered without dead corners.
● attachment expert, standard equipped with piping for additional hydraulic function
4. Considerable design
● boom cylinder is placed on top to effectively prevent collision.
● undercovered pipings, without collision risk.

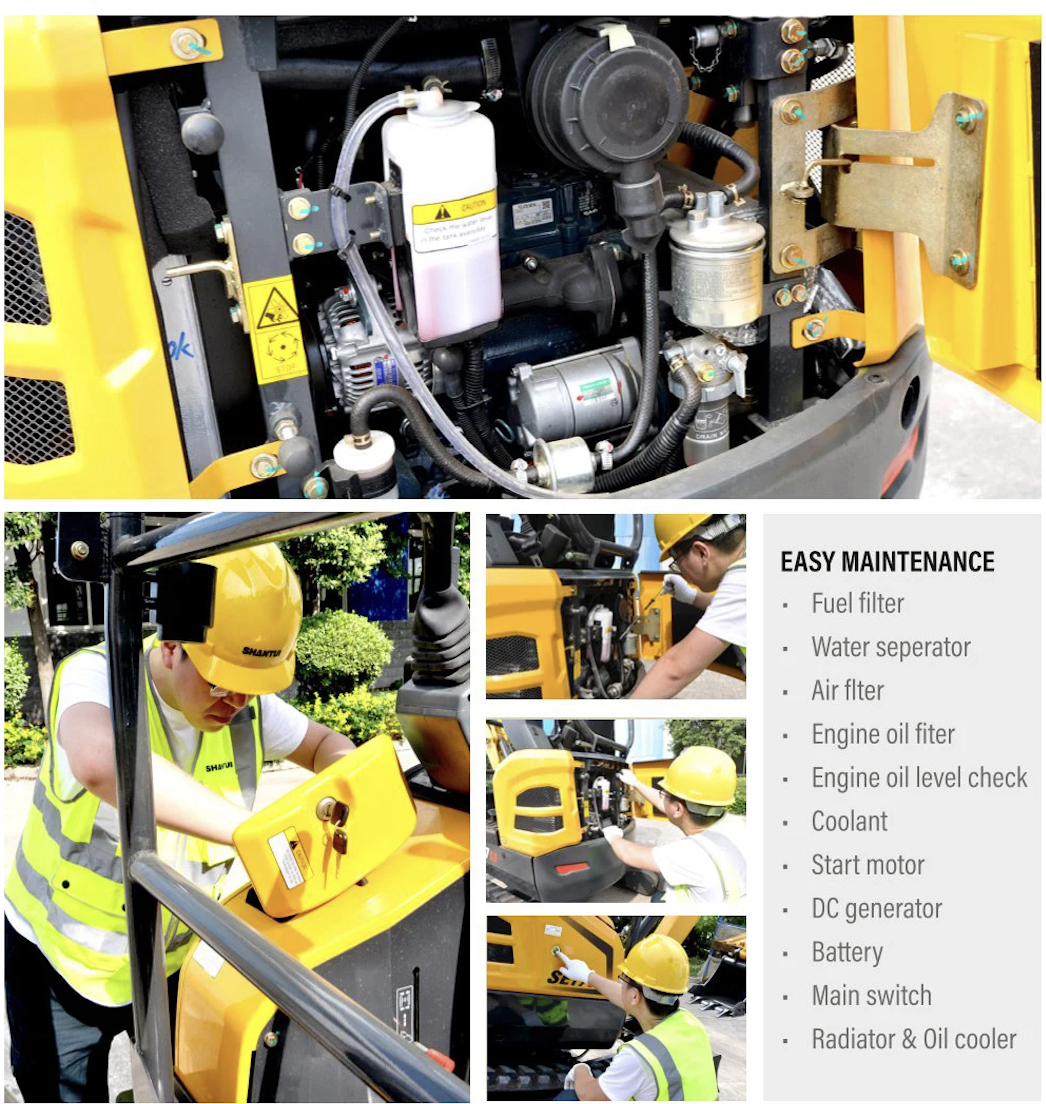

● convenient maintenance, and daily maintenance areas can be reached easily.
5. Optional equipment
●canopy warning light
●canopy working light
●rubber track
●narrow bucket
●rubber track pad
6. Attachment
●hydraulic breaker, ripper, wood grapple, quick hitch, auger, hedge shear
